Radial grid layers (the radial analogue of a Cartesian grid)

Source: R/circular_plotting.R
add_radial_grid.Rd

Returns a list of layers – an optional filled disc, concentric rings, and radial spokes, in two weights (major/minor) – to compose onto a radial `radiate()` plot with `+`. The unit boundary (radius 1) is left to the circumference ([add_circ()]); grid rings are interior only.

Usage

add_radial_grid(
  rings_major = 0.5,
  rings_minor = c(0.25, 0.75),
  spokes_major = 4L,
  spokes_minor = 4L,
  colour = "grey92",
  colour_minor = NULL,
  linewidth = 0.5,
  linewidth_minor = NULL,
  linetype = "solid",
  disc_fill = NA,
  origin = FALSE,
  origin_colour = "grey50",
  origin_size = 1.5,
  n_pts = 200L,
  color = NULL,
  color_minor = NULL,
  origin_color = NULL
)

Arguments

rings_major, rings_minor

Numeric radii (`<1`) of the major and minor rings. Defaults `0.5` and `c(0.25, 0.75)`.

spokes_major, spokes_minor

Number of evenly spaced spokes for each weight. `4` major gives the quadrant crosshairs; `4` minor interleaves them as 45-degree diagonals. Minor spokes are offset from major by half the major spacing (`pi / spokes_major`), so their placement is defined relative to the major count.

colour, colour_minor, color, color_minor

Spoke/ring colour. `colour_minor` defaults to `colour`. `color` and `color_minor` are the American-spelling aliases.

linewidth, linewidth_minor

Line widths. `linewidth_minor` defaults to `0.5 * linewidth`.

linetype

Line type for the spokes. Default `"solid"`.

disc_fill

Fill colour for the background disc; `NA` (default) draws no disc.

origin

Logical; add a centre dot ([add_origin_point()]). Default `FALSE`.

origin_colour, origin_size, origin_color

Centre-dot style. `origin_color` is the American-spelling alias.

n_pts

Points used to approximate the disc outline. Default `200L`.

Value

A list of ggplot2 layers.

See also

[add_multiple_circles()], [add_quadrant_lines()], [add_origin_point()]

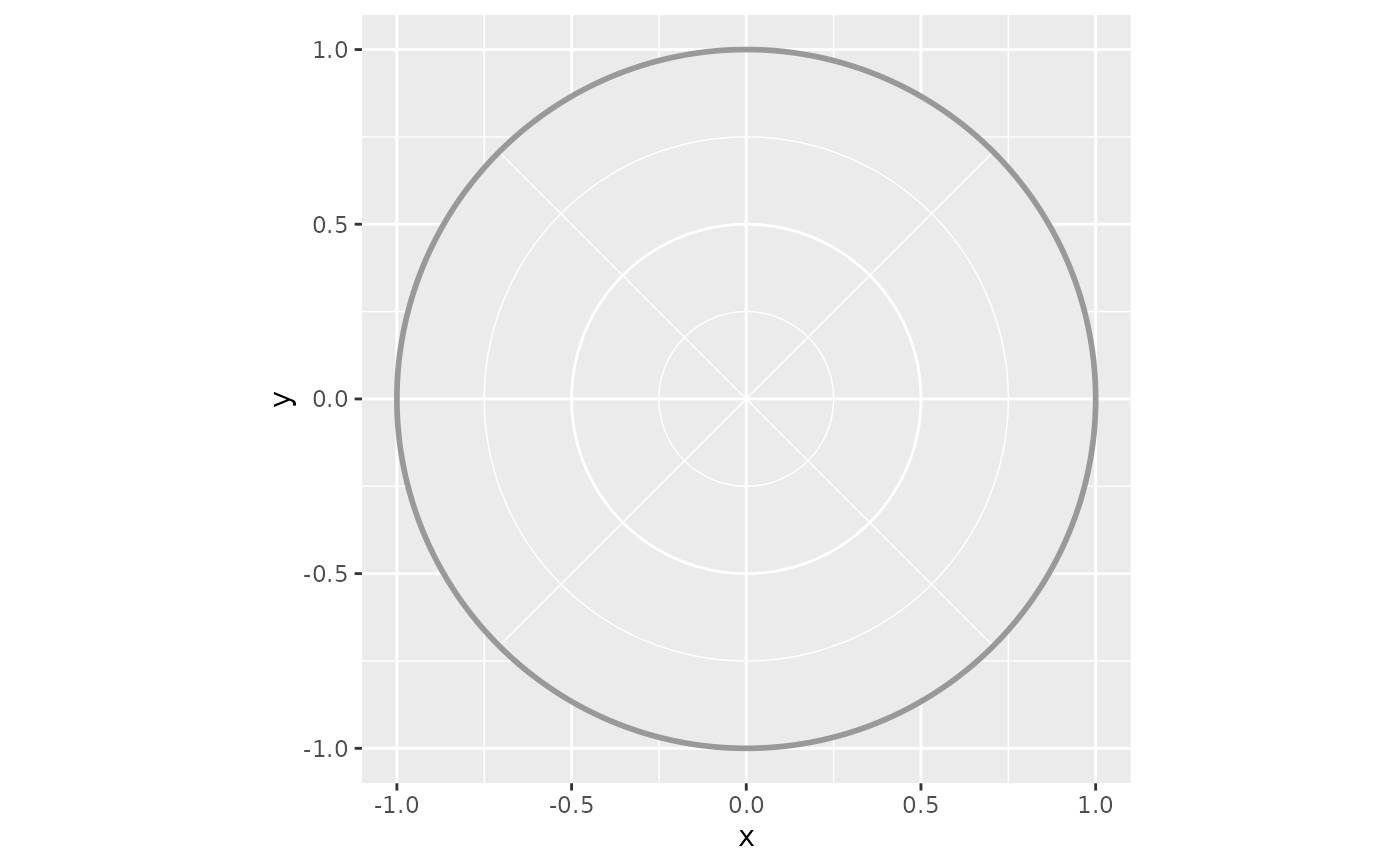

Examples

library(ggplot2)
ggplot() + coord_fixed() +
  add_radial_grid(disc_fill = "grey92", colour = "white") +
  add_circ()
