Creates a list of annotation layers that render a circle with the requested radius and appearance. The returned list can be added directly to a ggplot.
Usage
add_circ(
radius = 1,
circle_colour = "grey60",
circle_alpha = 1,
circle_size = 1,
linetype = "solid",
colour = NULL,
linewidth = NULL,
circle_color = NULL,
color = NULL
)Arguments
- radius
Radius of the circle, expressed in the same units as the plot coordinates.
- circle_colour, circle_color
Line colour for the circle. `circle_color` is the American-spelling alias.
- circle_alpha
Alpha transparency for the circle.
- circle_size
Line width for the circle.
- linetype
Line type for the circle.
- colour, color
ggplot-style alias for `circle_colour`. If supplied, takes precedence over `circle_colour`. `color` is the American-spelling alias.
- linewidth
ggplot-style alias for `circle_size`. If supplied, takes precedence over `circle_size`.

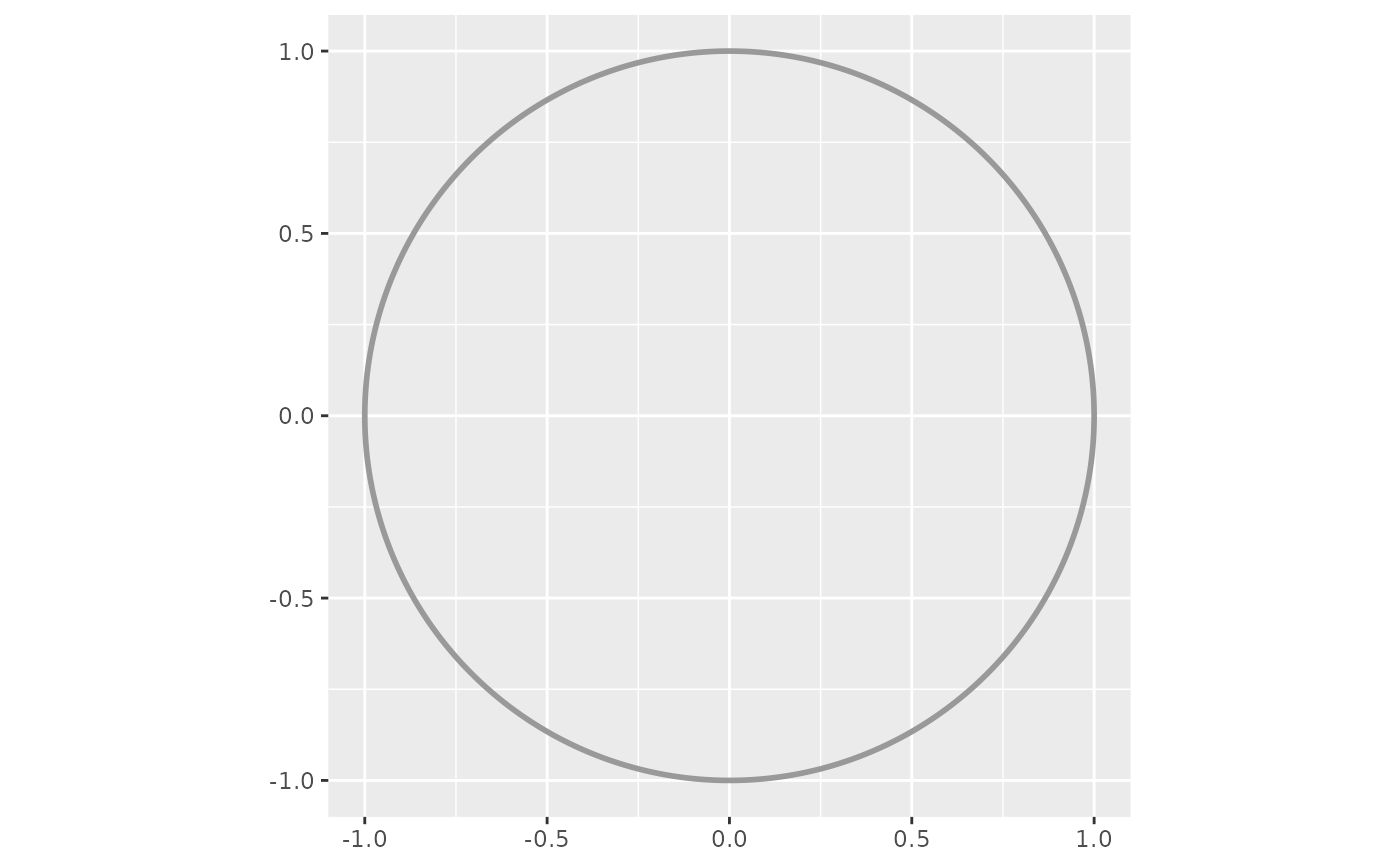

Examples
library(ggplot2)
ggplot() +
coord_fixed() +
add_circ(radius = 1)
